Chemical Hose

A more flexible chemical hose designed to handle 98% of all chemicals, solvents and corrosive liquids in both pressure and suction service.

T	Ultra High Molecular Weight Polyethylene (UHMW
C	Lightly corrugated blue EPDM compound
R	Multiple textile plies with dual helix wire
T.P.	-40°F to +250°F (-40° C to + 120°C)
S.F.	4:1

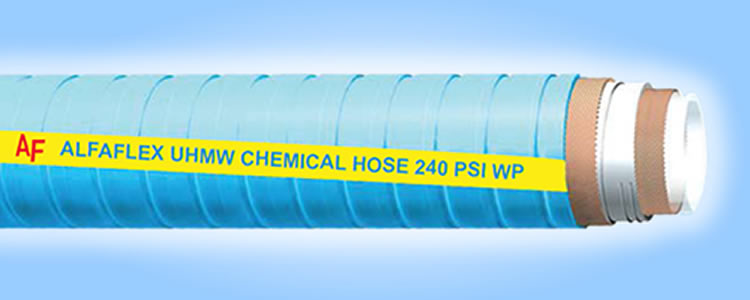

B	ALFAFLEX UHMW Chemical Hose 240 PSI W.P.

* T - Tube, C - Cover, R - Reinforcement, T.P - Temperature, S.F. - Safety Factor, B - Branding.

I.D.		O.D.		Standard Length		Bend Radius		Working Pressure		Approx. Weight
in	mm	in	mm	ft	m	in	mm	PSI	kg/cm2	kg/m
1	25.4	1.465	37.2	200	60	7	175	240	16	1.17
1 ¼	31.8	1.717	43.6	200	60	8	200	240	16	1.38
1 ½	38.1	1.965	49.9	200	60	10	250	240	16	1.58
2	50.8	2.512	63.8	200	60	14	350	240	16	2.24
2 ½	63.5	3.028	76.9	200	60	17	425	240	16	2.79
3	76.2	3.622	92.0	200	60	21	525	240	16	3.71
4	101.6	4.764	121.0	200	60	28	700	240	16	5.26
6	152.4	6.858	174.2	100	30	42	1, 050	240	16	8.74

* Standard Hose Length : 200ft(60m), 100ft(30m)
