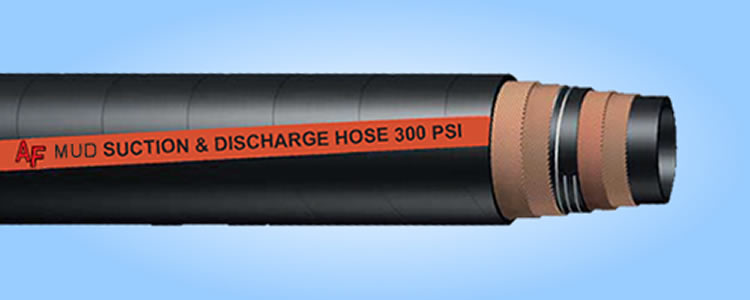

Mud Hose
This hose is designed for offshore drilling and other demanding applications where longer lengths and fewer connections are desired. Premium hose design for superior performance and higher working pressure in tough environments. Cover withstands exposure to weather, salt water, sunlight and oil.
T |
Black high grade of oil resistant Nitrile(NBR) |
C |
Black abrasion, oil, weather & ozone resistant Neoprene(CR) |
R |
Multiple textile plies with dual helix wire |
T.P. |
-20°F to +180° F (-30°C to + 80°C) |
S.F. |
4:1 |
B |
ALFAFLEX Mud Suction & Discharge Hose 300 PSI W.P. |
* T - Tube, C - Cover, R - Reinforcement, T.P - Temperature, S.F. - Safety Factor, B - Branding.
| I.D. | O.D. | Standard Length | Bend Radius | Working Pressure | Approx. Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| in | mm | in | mm | ft | m | in | mm | PSI | kg/cm2 | kg/m |
| 1 ½ | 38.1 | 1.953 | 49.6 | 200 | 60 | 10 | 250 | 300 | 20 | 1.25 |
| 2 | 50.8 | 2.504 | 63.6 | 200 | 60 | 12 | 300 | 300 | 20 | 1.87 |
| 2 ½ | 63.5 | 3.004 | 76.3 | 200 | 60 | 16 | 400 | 300 | 20 | 2.30 |
| 3 | 76.2 | 3.622 | 92.0 | 200 | 60 | 20 | 500 | 300 | 20 | 3.23 |
| 4 | 101.6 | 4.717 | 119.8 | 200 | 60 | 28 | 700 | 300 | 20 | 4.97 |
| 6 | 152.4 | 6.925 | 175.9 | 100 | 30 | 48 | 1, 200 | 300 | 20 | 9.30 |
| 8 | 203.2 | 9.05 | 230 | 100 | 30 | 64 | 1, 600 | 300 | 20 | 14.5 |
* Standard Hose Length : 200ft(60m), 100ft(30m)
