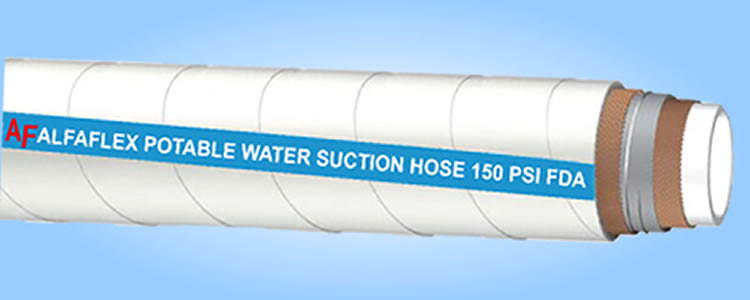

Food Hose

Tube and cover designed for suction, discharge or transfer of food and potable water. Highly resistant to animal fat and vegetable oils.

T	White NBR compound
C	White Neoprene compound
R	Multiple textile plies with helix wire
T.P.	-20°F to +180°F (-30° C to + 80°C)
S.F.	4:1
B	ALFAFLEX FDA/Potable Water Suction Hose 150 PSI WP.

* T - Tube, C - Cover, R - Reinforcement, T.P - Temperature, S.F. - Safety Factor, B - Branding.

I.D.		O.D.		Standard Length		Bend Radius		Working Pressure		Approx. Weight
in	mm	in	mm	ft	m	in	mm	PSI	kg/cm2	kg/m
1	25.4	1.480	37.6	200	60	6	150	150	10	1.13
1 ¼	31.8	1.732	44.0	200	60	8	200	150	10	1.32
1 ½	38.1	1.980	50.3	200	60	10	250	150	10	1.52
2	50.8	2.520	64.0	200	60	12	300	150	10	2.17
2 ½	63.5	3.020	76.7	200	60	15	375	150	10	2.62
3	76.2	3.559	90.4	200	60	20	500	150	10	3.45
4	101.6	4.654	118.2	200	60	28	700	150	10	5.21
5	127.0	5.866	149.0	200	60	40	1, 000	150	10	8.04
6	152.4	6.909	175.5	200	60	48	1, 200	150	10	10.71

* Standard Hose Length : 200ft(60m), 100ft(30m)

Tube and cover designed for suction, discharge or transfer of food and potable water. Highly resistant to animal fat and vegetable oils.

T	White NBR compound
C	Blue Neoprene compound
R	Multiple textile plies with helix wire
T.P.	-20°F to +180° F (-30°C to + 80°C)
S.F.	4:1
B	ALFAFLEX Potable Water Suction Hose 300 PSI WP.

* T - Tube, C - Cover, R - Reinforcement, T.P - Temperature, S.F. - Safety Factor, B - Branding.

I.D.		O.D.		Standard Length		Bend Radius		Working Pressure		Approx. Weight
in	mm	in	mm	ft	m	in	mm	PSI	kg/cm2	kg/m
1	25.4	1.480	37.6	200	60	6	150	300	20	1.29
1 ¼	31.8	1.732	44.0	200	60	8	200	300	20	1.51
1 ½	38.1	1.980	50.3	200	60	10	250	300	20	1.74
2	50.8	2.520	64.0	200	60	12	300	300	20	2.49
2 ½	63.5	3.020	76.7	200	60	15	375	300	20	3.01
3	76.2	3.559	90.4	200	60	20	500	300	20	3.96
4	101.6	4.654	118.2	200	60	28	700	300	20	5.99

* Standard Hose Length : 200ft(60m), 100ft(30m)
