Steam Hose

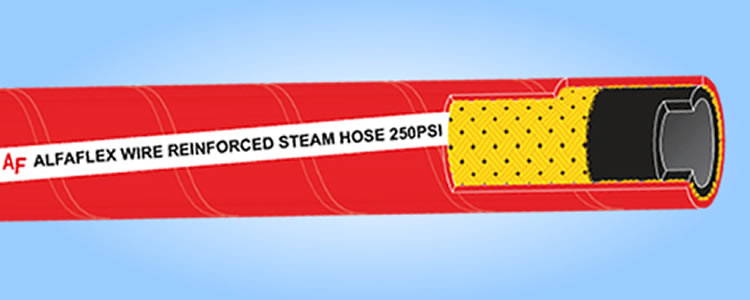

Alfaflex Wire Reinforced Steam Hose 250 PSI

All steam and hot water/steam applications where superior life, safety and performance are important. Special EPDM cover provides substantially longer service life due to its heat age resistance.

T	Black EPDM compound
C	Red EPDM compound
R	Multiple steel wire cord plies
T.P.	-40°F to +450° F (-40°C to + 230°C)
S.F.	10:1
B	ALFAFLEX Steam Hose 250 - PSI W.P.

* T - Tube, C - Cover, R - Reinforcement, T.P - Temperature, S.F. - Safety Factor, B - Branding.

I.D.		O.D.		Standard Length		Working Pressure		Approx. Weight
in	mm	in	mm	ft	m	PSI	kg/cm2	kg/m
½	12.7	0.972	24.7	200	60	250	17	0.71
¾	19.1	1.222	31.1	200	60	250	17	0.88
1	25.4	1.472	37.4	200	60	250	17	1.06
1 ½	38.1	2.130	54.1	200	60	250	17	1.92
2	50.8	2.661	67.6	200	60	250	17	2.66
2 ½	63.5	3.350	85.1	200	60	250	17	4.42
3	76.2	3.850	97.8	200	60	250	17	5.57
