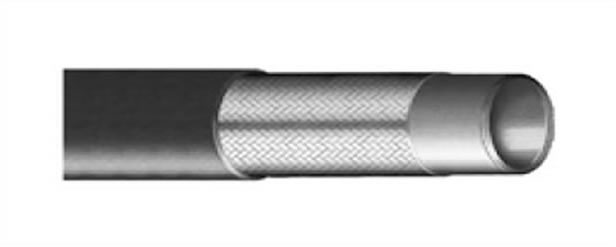

Hydraulic Hose, EN 853 1SN, R1AT

Applicable Spec.	EN 853 1SN/SAE 100R1AT/ISO 1436-1 1SN/R1AT
Tube	Black Oil Resistant Synthetic Rubber
Reinforcement	One High Tensile Steel Wire Braid
Cover	Black Oil & Weather Resistant Synthetic Rubber
Temperature Range	-40°C ~ 100°C (Continuous Service), 121°C (Max Operating Temp.)

SIZE (I, D)		O.D.	W.P.	B.P.	Bend Radius	Weight
inch	mm	mm	bar	bar	mm	kg/m
3/16"	4.8	11.5	250	1, 000	90	0.20
¼”	6.4	13.1	225	900	100	0.22
5/16”	7.9	15.0	215	860	115	0.26
⅜”	9.5	16.9	180	720	130	0.32
½”	12.7	20.1	160	640	180	0.40
⅝”	15.9	23.5	130	520	200	0.49
¾”	19.0	27.5	105	420	240	0.58
1”	25.4	34.5	88	352	300	0.83
1-¼”	31.8	43.2	63	252	420	1.24
1-½”	38.1	49.5	50	200	500	1.59
2”	50.8	63.2	40	160	630	2.19
